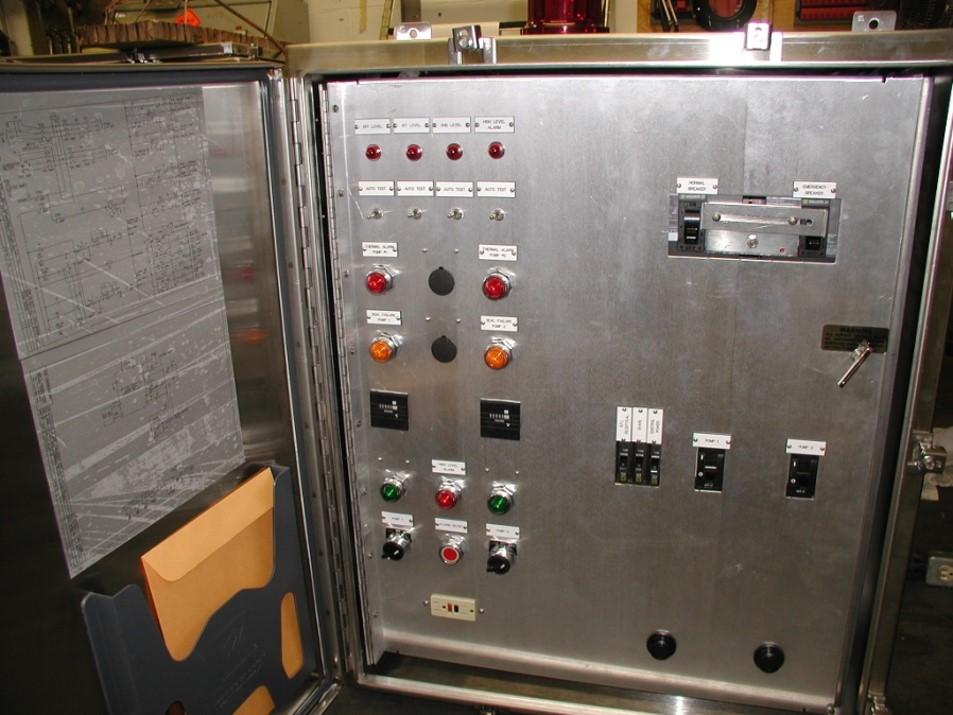

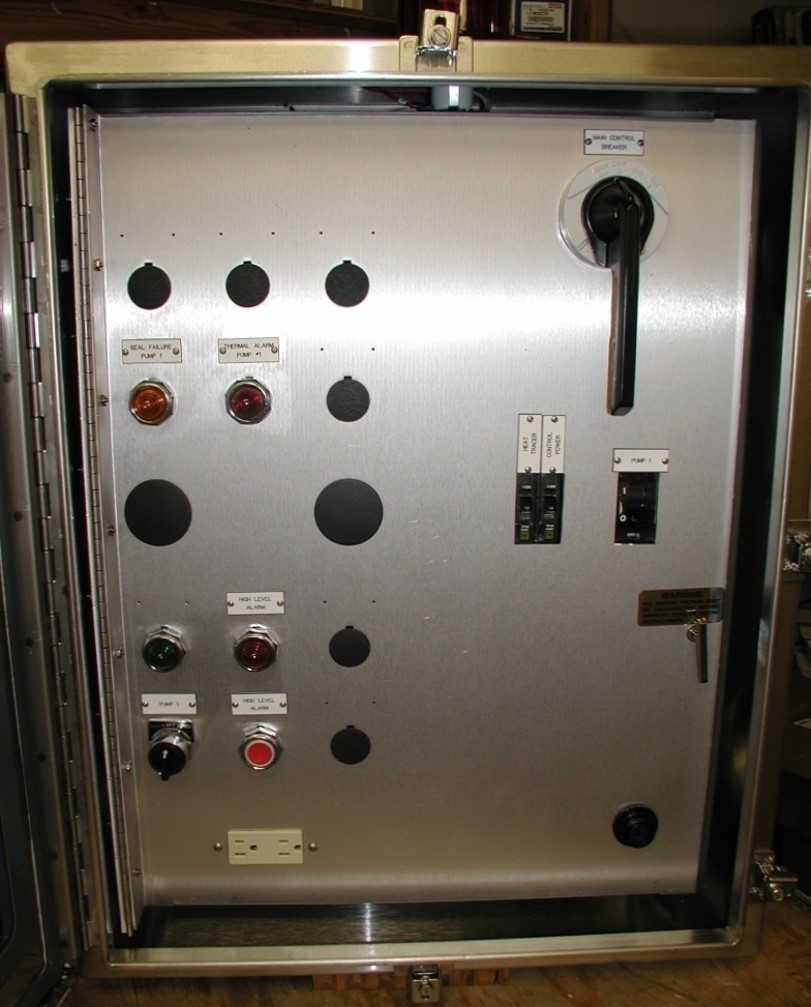

They are typically used in industries such as wastewater management, irrigation, and building services. These panels are equipped with features like control switches for manual or automatic operation, circuit breakers, and overload protection to ensure the safe and efficient functioning of the pump. They can come with different enclosure types like NEMA 4 watertight or NEMA 4X corrosion-resistant, depending on the environment they will be used in.
Here's a brief overview of their functionality:
- Control Switch: Allows the pump to operate manually or automatically. In auto mode, the pump maintains the water level between two floats (floats usually not included).
- Hand-Off-Auto Switch: Provides the option to run the pump continuously or turn it off.
- Circuit Breaker: Protects the single-phase pump motor from electrical overloads.
- Motor Protection Switch: Offers overload protection for three-phase motors.
- Magnetic Starter: Ensures the safe start-up of each pump.
These panels are designed to be user-friendly and provide reliable control over single pump systems, with options for customization based on specific requirements.
